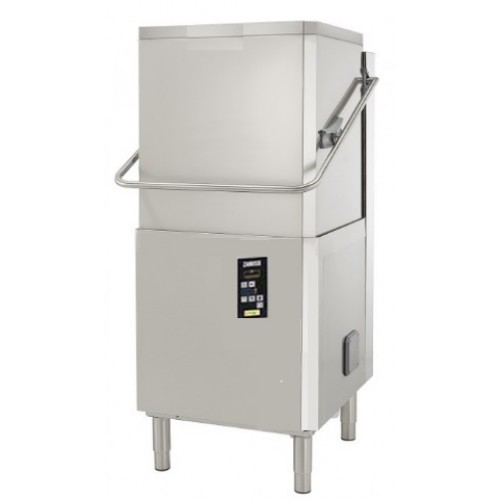

Commercial Dishwasher Hood Type 47 Rack
Commercial Dishwasher Hood Type 47 Rack

Commercial Dishwasher Hood Type 47 Rack

0 reviews
Product Code: 505087
Availability: In Stock
Viewed 428 times

Product Description

The hood-type dishwasher is for the reliable washing of glasses and dishes. The model for washing heavily soiled wash ware in fast cycles. The hood-type dishwasher is perfectly suited for high utilization in restaurants and catering facilities.

The hood-type dishwasher is characterized by fast cycle times. The integrated drain heat recovery system transfers the heat from the hot drain water to the fresh-water supply, reducing the boiler power consumption and saving up to 36 % of costs.

Technical Specifications :

Capacity                                     : 47 Rack / Hour

Housing Material                   : Stainless Steel

Type                                      : Fully-Automatic

Power                                    : 2000 W

Frequency                             : 50 Hz

Weight                                   : 68 kg

Dimension                              : 748x833x1515/1970

Electric Supply voltage          : 380-400V / 3Phase / 50Hz

Default Installed Power          : 12.9 kW

Boiler heating elements         : 12 kW

Boiler reducible to                  : 6 kW

Tank heating elements           : 3 kW

Wash pump size                     : 0,8 kW

Water supply temperature      : 10-60 °C

Inlet Water supply pressure    : 7 - 102 psi (0.5 - 7 bar)

Water consumption per cycle : 3 L

Boiler Capacity                       : 12 L

Tank Capacity                         : 42L

 Drain line size                        : 40mm


Features :

High-efficiency air gap

4 second (variable) pause after washing and before rinsing

Three-phase electrical connection, convertible to single phase on-site

Automatic start on hood closure

Low noise level

Self-draining wash pump and boiler

A fully automatic self-cleaning cycle avoids the risk of bacteria proliferation

Pre-arranged to accept external dispensers

Open the hood on the backside to prevent steam blasts to the operator.

54/90/150 seconds "high productivity" cycle

Application : To Wash Dishes

Warranty     : 1 Year
